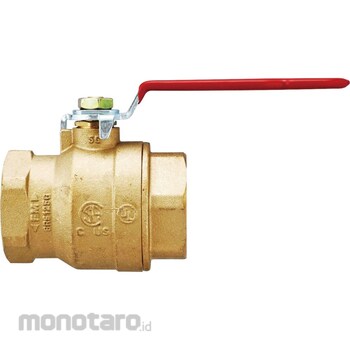

monotaro Ball Valve (Full Bore) 43771 1pc
Rp779.900
Persediaan
Spesifikasi Produk
| Model Number | 43771 |
|---|---|
| Unit | 1pc |
| Maximum Pressure (MPa) | 4.1 (water/oil/gas at normal temperature), 1.0 (water/oil/gas below 150 degrees Celsius) * Gas excludes flammability and toxicity |
| Dimensions a (mm) | 130 |
| Nominal Diameter B | 1.50 |
| Caliber Type | Full bore |
| Body Material | C3771B |
| Material (stems) | C3604B |
| Kind | brass |
| Size L (mm) | 92 |
| Connection Method | The screw-shaped |
| Bore diameter D ( phi mm) | 38 |
| Material (Handle) | SS400 |
| Class | 600 |
| Material (Packing) | PTFE |
| Dimensions h (mm) | 65 |
| Nominal Diameter A | 40 |
| Fluid Used | Water, oil, gas |
| Valve Type | Ball valve |
| Handle Shape | Lever type |
| M Code | 29979906 |
| Garansi Unit | 12 bulan |
| Garansi Part | 12 bulan |
| Garansi Service | 12 bulan |
| Berat (Kg) | 0.9 |
| Tanggal Produk Terdaftar | 28 June 2019 |
| Terakhir Diperbaharui | 16 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
The piping material.
Warning
Please do not use for any purpose other than.Ketentuan dan Kondisi Barang
