Autonics Rotary Encoder E60H Inkremental E60H20-1024-3-T-24 1pc

Name: Autonics Rotary Encoder E60H Inkremental E60H20-1024-3-T-24 1pc
Brand: Autonics
SKU: S010731130
Price: 2899900 IDR
Availability: InStock

#Nomor SKU S010731130

Autonics

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	E60H20-1024-3-T-24
Unit	1pc
Diameter Outer Shaft (mm)	Ø 20
Starting Torque (gf.cm)	150 (maximum)
Connection Type	Radial cable type
Control Output	Totem pole
Output Phases	A, B, Z
Resolution (P/R)	1024
Shaft Inner Diameter (mm)	20
Type	Incremental
Maximum Allowable Revolution (rpm)	6000
Maximum Response Frequency (kHz)	300
Power Supply (V DC)	12-24 (±5%(ripple P-P: max. 5%))
Level of Protection	IP50
Environment Ambient Humidity (%RH)	35 to 85; Storage: 35 to 90
Environment Ambient Temperature (°C)	-10 to 70; Storage: -25 to 85
Accessories	Bracket: 2
Berat (Kg)	0.3
Tanggal Produk Terdaftar	14 June 2019
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

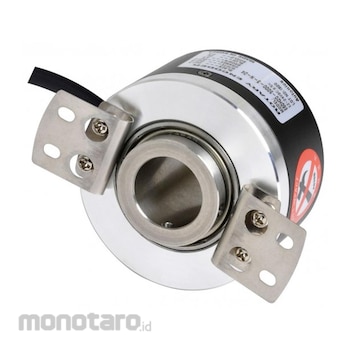

The E60 series incremental rotary encoders feature a Ø60 mm housing size with a Ø20 mm through hollow shaft. The encoder provides accurate measurement of angle, position, revolution, speed, acceleration, and distance and is available with a variety of output control options.

Warning

-Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.
[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
-The weight includes packaging. The weight in parenthesis is for unit only.
-Environment resistance is rated at no freezing or condensation.
- Image on this page only as Representative Image. It will follow the Model Number Information
