CKD New Joint GW (Fitting) / (Y Type Plug) GWP88-Y 1box(10pcs)
Rp829.900
Persediaan
Spesifikasi Produk
| Model Number | GWP88-Y |
|---|---|
| Unit | 1box(10pcs) |
| Effective Cross Section Area (mm²) | 22.2 |
| Connection fitting diameter (phi mm) | 8 |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| Negative pressure performance (kPa) | -100 |
| Maximum Working Pressure (MPa) | 1 |
| Hexagon hole diameter (mm) | 5.9 |
| Used Tube | Soft nylon tube (F-12 * *)/Urethane tube (U-95 * * , NU- * *) |
| Applicable pipe outer diameter (phi mm) | 8 |
| Working Fluid | Compressed air |
| TRUSCO Number | 401-6289 |
| M Code | 39610645 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 14 May 2019 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

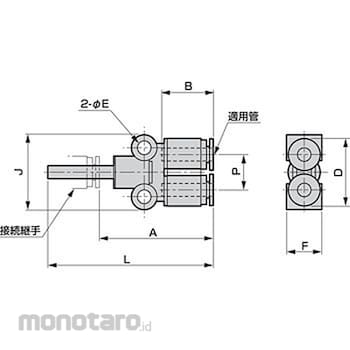

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension J (mm)=27; Dimension F (mm)=15.5; Dimension B (mm)=19; Dimension E (mm)=4.2; Dimension P (mm)=15.5; Dimension L (mm)=60; Dimension A (mm)=41; Dimension D (mm)=30
