CKD New Joint GW (Fitting) / (Y Type Plug) GWP46-Y 1box(10pcs)

Name: CKD New Joint GW (Fitting) / (Y Type Plug) GWP46-Y 1box(10pcs)
Brand: CKD
SKU: S010561447
Price: 729900 IDR
Availability: InStock

#Nomor SKU S010561447

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	GWP46-Y
Unit	1box(10pcs)
Operating Temperature (°C)	-10 to 60 (but not frozen)
Connection fitting diameter (phi mm)	6
Effective Cross Section Area (mm²)	5.8
Working Fluid	Compressed air
Applicable pipe outer diameter (phi mm)	4
Maximum Working Pressure (MPa)	1
Used Tube	Soft nylon tube (F-12 * )/Urethane tube (U-95 * , NU- * *)
Negative pressure performance (kPa)	-100
Hexagon hole diameter (mm)	2.5
TRUSCO Number	401-6017
M Code	39610593
Berat (Kg)	0.8
Tanggal Produk Terdaftar	14 May 2019
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

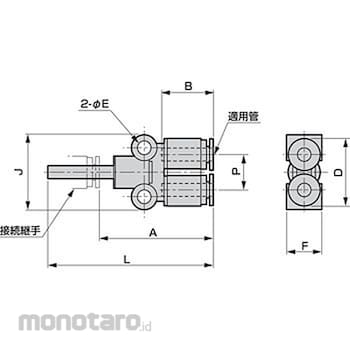

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension F (mm)=11; Dimension D (mm)=21; Dimension J (mm)=23; Dimension P (mm)=11; Dimension B (mm)=16; Dimension E (mm)=4.2; Dimension L (mm)=52.5; Dimension A (mm)=35
