CKD New Joint GW (Fitting) / (C Type Plug) GWP46-C 1box(10pcs)
Rp729.900
Persediaan
Spesifikasi Produk
| Model Number | GWP46-C |
|---|---|
| Unit | 1box(10pcs) |
| Connection fitting diameter (phi mm) | 6 |
| Used Tube | Soft nylon tube (F-12 * *)/Urethane tube (U-95 * * , NU- * *) |
| Effective Cross Section Area (mm²) | 2.4 |
| Negative pressure performance (kPa) | -100 |
| Maximum Working Pressure (MPa) | 1 |
| Minimum Hole Diameter (mm) | 1.7 |
| Working Fluid | Compressed air |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| Applicable pipe outer diameter (phi mm) | 4 |
| TRUSCO Number | 401-5991 |
| M Code | 39610471 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 14 May 2019 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

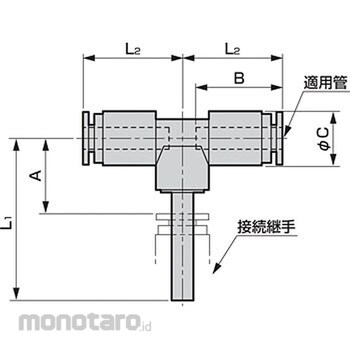

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension L1 (mm)=31; Dimension B (mm)=16; Dimension L2 (mm)=18.5; Dimension C (mm)=10; Dimension A (mm)=13.5
