CKD Guided Cylinder Rolling Bearing STG-B-12-1~ Series STG-B-12-10-T2V-H 1pc

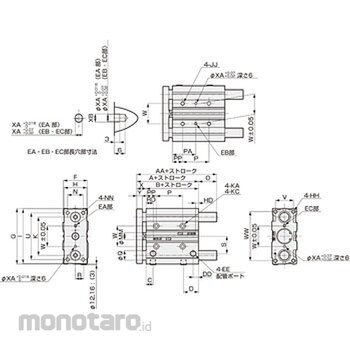

Friendly to the global environment, improvement of the maintenance performance, a wide range of applications, corresponding to the environment Dimension KC (mm)=7.5 Counterbore Depth 4.5; Dimension B (mm)=29; Dimension PP (mm)=5; Dimension XB (mm)=3.5; Dimension MM (mm)=6; Dimension U (mm)=48; Dimension P (mm)=30 or less: 20, more than 30 and less than 100: 40, more than 100 and less than 200: 110; Dimension R (mm)=8; Dimension I (mm)=56; Dimension K (mm)=41; Dimension Y (mm)=8; Dimension C (mm)=12; Dimension PA (mm)=30 or less: 15, 30 or more 100 or less: 25, 100 or more 200 or less: 60; Dimension XA (mm)=3; Dimension JJ (mm)=M5 depth 10; Dimension H (mm)=22; Dimension RD (mm)=5; Dimension F (mm)=26; Dimension NN (mm)=M4 penetration; Dimension HD (mm)=5; Dimension A (mm)=42; Dimension WW (mm)=50; Dimension X (mm)=13 _{-1.5 ; Dimension N (mm)=14; Dimension W (mm)=23; Dimension O (mm)=30 or less: 1, 30 or more and 100 or less: 13, 100 or more: 43; Dimension DD (mm)=7; Dimension Q (mm)=6; Dimension D (mm)=16; Dimension AA (mm)=30 or less: 43, more than 30 100 or less: 55, more than 100: 85; Dimension V (mm)=18; Dimension HH (mm)=M4 depth 10; Dimension G (mm)=58; Dimension EE (mm)=M5; Dimension KA (mm)=4.3 penetration; Dimension S (mm)=17}
