CKD Super Micro Cylinder SCM Basic Single Rod Base SCM-CA-63B Stroke 100 SCM-CA-63B-100-T2V-H-ZB2 1pc
Rp5.299.900
Persediaan
Spesifikasi Produk
| Model Number | SCM-CA-63B-100-T2V-H-ZB2 |
|---|---|
| Unit | 1pc |
| Operation Method | Backward movement |
| format | One mountain clevis shape |
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
| Accessories | Double bracket |
| Allowable Energy Absorption (J) | 14.4 |
| Stroke | 100 |
| Tube Inner Diameter (mm) | 63 |
| Working Fluid | Compressed air |
| Maximum Working Pressure (MPa) | 1 |
| Operating Piston Speed (mm/s) | 30 to 1000 (Please use within the allowable energy absorption) |
| Guaranteed Pressure Resistance (MPa) | 1.6 |
| Minimum Working Pressure (MPa) | 0.05 |
| Stroke length tolerance | 1.8 (~ 1500) |
| Switch model number | T2V |
| Number of switches | With head side 1 |
| Air cushion | 13.4 mm (effective length) |
| M Code | 39822666 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 11 May 2019 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

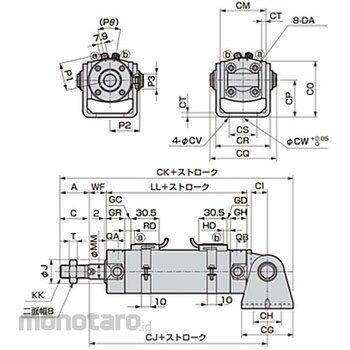

Dimension CT (mm)=8; Dimension J (mm)=32; Dimension QB (mm)=12; Dimension SD (mm)=38; Dimension CG (mm)=74; Dimension LL (mm)=90; Dimension T (mm)=11; Dimension CN (mm)=97.8; Dimension CO (mm)=96; Dimension QA (mm)=15; Dimension HD (mm)=13; Dimension D (mm)=72; Dimension GH (mm)=22; Dimension RD (mm)=11; Dimension CW (mm)=20; Dimension CQ (mm)=105.4; Dimension CA (mm)=199.5; Dimension WF (mm)=23; Dimension A (mm)=35; Dimension GR (mm)=25; Dimension KK=M18 x 1.5; Dimension CJ (mm)=142.5; Dimension DA=M10; Dimension C (mm)=32; Dimension P2 (mm)=44.4; Dimension GD (mm)=9; Dimension MM (mm)=20; Dimension CH (mm)=46; Dimension EE=Rc1 / 4; Dimension CI (mm)=22; Dimension CE (mm)=22; Dimension CV (mm)=11; Dimension CM (mm)=74; Dimension B (mm)=27; Dimension CK (mm)=214.5; Dimension CD (mm)=18; Dimension CP (mm)=60; Dimension GC (mm)=7; Dimension Q (mm)=36; Dimension CR (mm)=90.4; Dimension CS (mm)=46; Dimension P=(20 degrees) (theta); Dimension P1 (mm)=42.7
