CKD New Joint GW (Fitting) / (Double Mouth Y Cheese) Selling Individually GWY12-10 1pc
Rp83.900
Persediaan
Spesifikasi Produk
| Model Number | GWY12-10 |
|---|---|
| Unit | 1pc |
| Applicable pipe outer diameter ( phi mm) | 12 |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| Maximum Working Pressure (MPa) | 1 |
| Working Fluid | Compressed air |
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
| Effective Cross Section Area (mm²) | 37 |
| Negative pressure performance (kPa) | -100 |
| TRUSCO Number | 401-7862 |
| M Code | 39609692 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 11 May 2019 |
| Terakhir Diperbaharui | 08 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

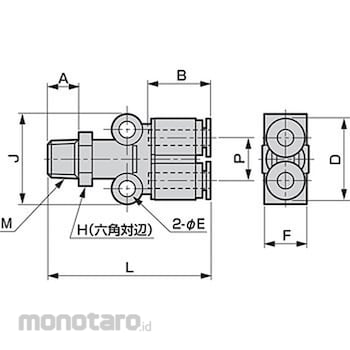

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension A (mm)=12; Dimension P (mm)=21; Dimension B (mm)=23; Dimension J (mm)=32; Dimension D (mm)=41; Dimension H (mm)=22; Dimension F (mm)=21; Dimension L (mm)=66; Dimension M (mm)=R3/8; Dimension E (mm)=4.2
