CKD New Joint GW (Fitting) / (Double Mouth Y Cheese) Selling Individually GWY8-8 1pc
Rp68.900
Persediaan
Spesifikasi Produk
| Model Number | GWY8-8 |
|---|---|
| Unit | 1pc |
| Effective Cross Section Area (mm²) | 25.5 |
| Maximum Working Pressure (MPa) | 1 |
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
| Negative pressure performance (kPa) | -100 |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| Working Fluid | Compressed air |
| Applicable pipe outer diameter ( phi mm) | 8 |
| TRUSCO Number | 401-8044 |
| M Code | 39609631 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 11 May 2019 |
| Terakhir Diperbaharui | 08 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

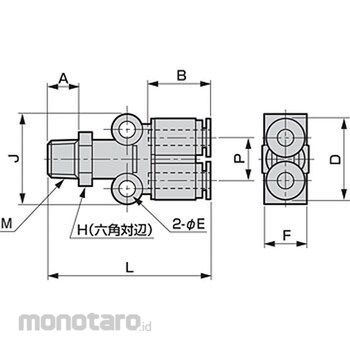

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension D (mm)=30; Dimension M (mm)=R1/4; Dimension L (mm)=52; Dimension F (mm)=15.5; Dimension P (mm)=15.5; Dimension H (mm)=17; Dimension A (mm)=11; Dimension E (mm)=4.2; Dimension B (mm)=19; Dimension J (mm)=27
