CKD New Joint GW (Fitting) / (One Side Elbow) Rosewood GWL12-8 1pc
Rp47.900
Persediaan
Spesifikasi Produk
| Model Number | GWL12-8 |
|---|---|
| Unit | 1pc |
| Maximum Working Pressure (MPa) | 1 |
| Minimum Hole Diameter (mm) | 8.5 |
| Effective Cross Section Area (mm²) | 33 |
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
| Working Fluid | Compressed air |
| Applicable pipe outer diameter ( phi mm) | 12 |
| Screw Size (mm) | R1/4 |
| Negative pressure performance (kPa) | -100 |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| TRUSCO Number | 401-5053 |
| M Code | 39608536 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 11 May 2019 |
| Terakhir Diperbaharui | 08 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

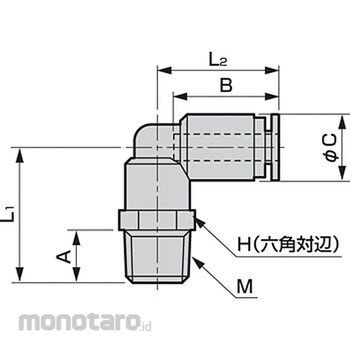

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension L1 (mm)=33; Dimension C (mm)=20; Dimension B (mm)=23; Dimension H (mm)=19; Dimension L2 (mm)=29.5; Dimension A (mm)=11
