CKD New Joint GW (Fitting) / (Manifold (Double, with R) GWMF48-8-W 1pc
Rp189.900
Persediaan
Spesifikasi Produk
| Model Number | GWMF48-8-W |
|---|---|
| Unit | 1pc |
| Maximum Working Pressure (MPa) | 1 |
| Negative pressure performance (kPa) | -100 |
| Effective Cross Section Area (mm²) | 24.3 |
| Working Fluid | Compressed air |
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
| Applicable pipe outer diameter ( phi mm) | Q1: 4, Q2: 8 |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| M Code | 39610855 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 11 May 2019 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

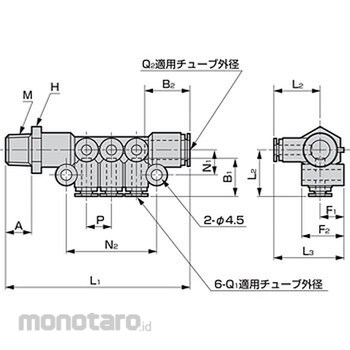

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension M (mm)=R1/4; Dimension N2 (mm)=38; Dimension H (mm)=17; Dimension A (mm)=11; Dimension P (mm)=10.5; Dimension L3 (mm)=29.5; Dimension F1 (mm)=10; Dimension N1 (mm)=10.5; Dimension F2 (mm)=17.5; Dimension B2 (mm)=19; Dimension L2 (mm)=19.5; Dimension L1 (mm)=77.5; Dimension B1 (mm)=16
