CKD New Joint GW (Fitting) / (Manifold (Double, with R)
#Grup produk P103120490
Spesifikasi
| Maximum Working Pressure (MPa) | 1 |
|---|---|
| Negative pressure performance (kPa) | -100 |
| Working Fluid | Compressed air |
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

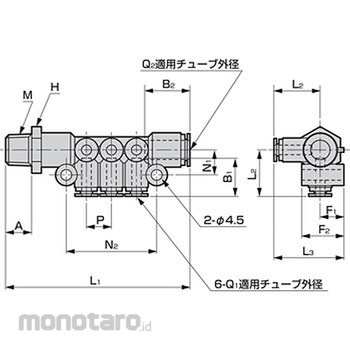

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension M (mm)=R1/4; Dimension N2 (mm)=38; Dimension H (mm)=17; Dimension A (mm)=11; Dimension P (mm)=10.5; Dimension L3 (mm)=29.5; Dimension F1 (mm)=10; Dimension N1 (mm)=10.5; Dimension F2 (mm)=17.5; Dimension B2 (mm)=19; Dimension L2 (mm)=19.5; Dimension L1 (mm)=77.5; Dimension B1 (mm)=16
