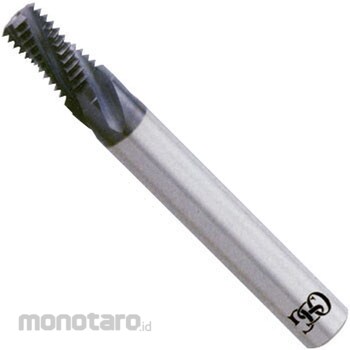

OSG NC Planet Cutter (WX-PNC) WX-PNC 7.5x9.1xRC28 1pc
Rp6.799.900
Persediaan
Spesifikasi Produk
| Model Number | WX-PNC 7.5x9.1xRC28 |
|---|---|
| Unit | 1pc |
| Material | Cemented carbide (CARBIDE) |
| Nominal Dimension | M7.5 |
| Screw Diameter | M7.5 |
| Number of Flutes | 3 |
| Number of Threads | 28 |
| Overall Length L (mm) | 60 |
| Surface Processing | WX coating |
| Compatible Size | 1/8 |
| Blade Diameters D (mm) | 7.5 |
| Shank Diameters d (mm) | 8 |
| Number of Threads per inch | 28 |
| Lower Neck Part L1 (mm) | 12.7 |
| Blade Length Lc (mm) | 9.1 |
| Helix Angle (°) | 30 |
| Shank Precision | h6 |
| EDP No. | 3900201 |
| TRUSCO Number | 636-1706 |
| M Code | 09040263 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 27 February 2019 |
| Terakhir Diperbaharui | 16 March 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Thread cutting is performed using planetary motion by the simultaneous three axis control function of the machining center. If it is the same pitch with one piece, you can process a screw with different name. Both right-handed and left-handed threads can be machined.
