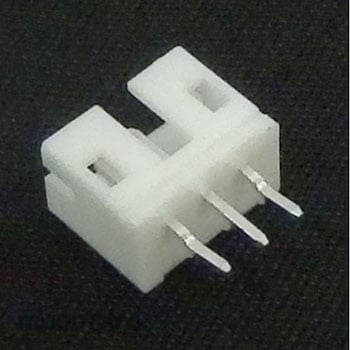

JST PH Connector Base with Poster B3B-PH-K-S(LF)(SN) 1pack(10pcs)

Name: JST PH Connector Base with Poster B3B-PH-K-S(LF)(SN) 1pack(10pcs)
Brand: JST
SKU: S008573973
Price: 15900 IDR
Availability: InStock

#Nomor SKU S008573973

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	B3B-PH-K-S(LF)(SN)
Unit	1pack(10pcs)
Number of Poles	3
Dimensions a (mm)	4
Dimensions b (mm)	7.9
Material	(Post) brass, (base) nylon 66, UL 94 V - 0
Compatible Print Substrate Thickness (mm)	0.8 to 1.6
Rated Voltage (V)	100 AC, DC
Insulation Resistance (MΩ)	Over 1000
Rated Current (A)	2 AC, DC _ x 1000 D _.(When using AWG # 24)
Operating Temperature Range (°C)	-25 to + 85 _ x 000 D _.(Including temperature rise value during energization)
Electric AWG Wire Conjugation Range (#)	32 to 24
Withstand Voltage	AC 800 V, 1 minute
Standard	Recognized E 60389 - x 000 D -. Certified LR 20812 _ x 000 D _. R 75087
Form	Top type
Color	Natural (white)
Compatible	Housing: PHR - *. Contact: BPH-002T-P0.5S, SPH-002T-0.5S, SPH-002T-P0.5L, SPH-004T-P0.5S
Contact Resistance (miliΩ)	Initial: 10 or less _ x 1000 D _. After environmental test: 20 or less
Surface Processing	Tin plating with copper base (reflow processing)
M Code	34952915
Berat (Kg)	0.1
Tanggal Produk Terdaftar	28 November 2018
Terakhir Diperbaharui	07 February 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Operating Temperature Range: -25 to +85°C (Including Temperature Rise Value During Energization)
Compatible (Contact): PH-002T-P0.5S, SPH-002T-0.5S, SPH-002T-P0.5L, SPH-004T-P0.5S
