JST Connector for Relay Connection CL Series Contact CL-2218S Red 1pack(500pcs)
Rp2.399.900
Persediaan
Spesifikasi Produk
| Model Number | CL-2218S |
|---|---|
| Unit | 1pack(500pcs) |

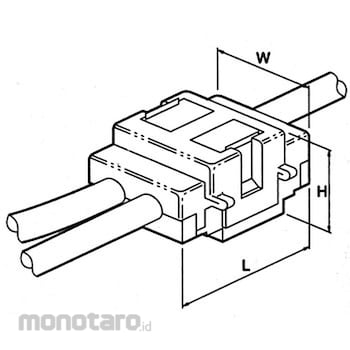

| Dimension H (mm) | 11 |
| Dimension W (mm) | 13.8 |
| Dimension L (mm) | 20 |
| Wire Conjugation Range (mm²) | 0.3 to 0.75 |
| Operating Temperature Range (°C) | 105 (Including the temperature rise value during energization) |
| Electric Wire Covering Outer Diameter (mm) | 2.2 to 3.2 |
| Electric AWG Wire Conjugation Range (#) | 22 to 18 |
| Rated Voltage (V) | 300 AC, DC |
| Standard | Listed E 42024.Certified LR 20812 |
| Rated Current (A) | MAX 7 A AC, DC |
| Compatible Electiric Wires | UL 1015, VSF / AWG # 22 to # 18.0.3 mm <sup> 2 </ sup> to 0.75 mm <sup> 2 </ sup> |
| Material | Brass, 6 Nylon |
| Color | Red |
| Connection Type | Short circuit |
| TRUSCO Number | 436-1687 |
| M Code | 08527425 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 28 November 2018 |
| Terakhir Diperbaharui | 01 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
It is An Insulation Displacement Type Connector which Can be Branched and Short-Circuited with A Simple Tool Such as Pliers. You Can Use It for Easy Connection. When Connecting, There is No Need to Peel Off The Coating of The Wire. Of Course, Special T
