Feature
It is a cogged flange type unit combining a lightweight type unit ball bearing and a special light alloy bearing box. .It is an oil-free, small, lightweight, clean bearing unit incorporating bearing of diameter series 0. .Because the bearing bo

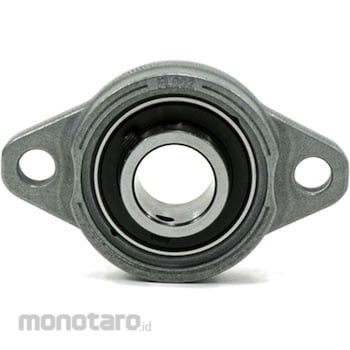

FYH UFL Small, Lightweight Chisel Flange Type UFL002 1pc
Rp149.900
Persediaan
Spesifikasi Produk
| Model Number | UFL002 |
|---|---|
| Unit | 1pc |
| Dimension B | 16.5mm |
| Shape | Horizontal flange type |
| Dimension J | 53mm (+/- 0.3) |
| Bearing Number | SU002 |
| Shaft Hole Classification | Cylindrical hole type (with set screw) |
| Coefficient fo | 13.9 |
| Material | High carbon chromium bearing steel |
| Unit Weight | (Reference) 0.085kg |
| Standard rated load Cor | 2.85kN |
| Dimension N | 7mm |
| Mounting Bolt Nominal Designation | M6 |
| Shaft Hole Diameter d | 15mm |
| Dimension S | 5.5mm |
| Dimension A (mm) | 13 |
| Standard rated load Cr | 5.60kN |
| Dimension AO | 17.5mm |
| Dimension L | 42mm |
| Dimension A1 | 6.5mm (+/- 0.5) |
| Dimensions h | 67mm |
| M Code | 38346463 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 14 November 2018 |
| Terakhir Diperbaharui | 19 November 2025 |
