A bearing unit that combines a ball bearing for the unit and a bearing box with a diamond-shaped flange. Suitable for mounting on a vertical surface such as the side of a machine. Compared to the square flange type unit, the mounting space is smaller and the unit mass is also smaller.
The pitches at the centers of the two mounting bolt holes in the diamond flange bearing box are compatible because the pitches at the diagonal bolt hole centers of the square flange bearing box are the same.
The bearing box is attached to the machine body with two bolts.
Roller conveyors, those with small mounting interval dimensions, etc.

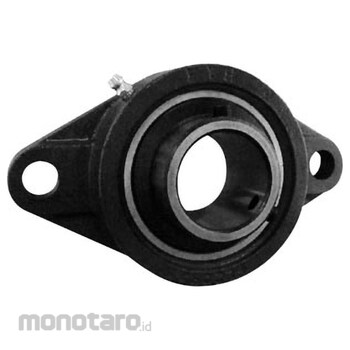

FYH Rhomb Flange Type Unit UCFL210 1pc
Rp389.900
Persediaan
Spesifikasi Produk
| Model Number | UCFL210 |
|---|---|
| Unit | 1pc |
| Basic Dynamic Load Rating (kN) | 35.1 |
| Suitable For | FL210 |
| Nominal Size of Mounting Bolt | M16 |
| Shaft hole type | Cylindrical hole (with set screw) |
| Dimension L (mm) | 115 |
| Dimension N (mm) | 19 |
| Dimensions a2 (mm) | 22 |
| Dimensions d (mm) | 50 |
| Dimensions j (mm) | 157 |
| Dimension S (mm) | 19 |
| Dimension A0 (mm) | 54.6 |
| Dimension H (mm) | 197 |
| Basic Static Load Rating (kN) | 23.3 |
| Dimension A1 (mm) | 15 |
| Dimension A (mm) | 40 |
| Bearing Identification Number | UC210 |
| Shape | Diamond flange unit |
| Dimension B (mm) | 51.6 |
| Cover | None |
| Coefficient | 14.4 |
| M Code | 07193627 |
| Berat (Kg) | 2.2 |
| Tanggal Produk Terdaftar | 14 November 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
