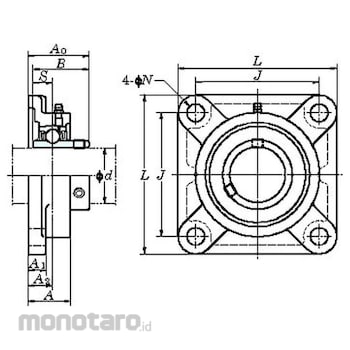

A bearing unit that combines a bearing and a bearing box with a square flange.
Suitable for mounting on a vertical surface such as the side of a machine.
The bearing box is attached to the machine body with four bolts.
FYH UCF Square Flange Type (Cylindrical Hole) UCF317 1pc
Rp3.199.900
Persediaan
Spesifikasi Produk
| Model Number | UCF317 |
|---|---|
| Unit | 1pc |
| Suitable For | F317 |
| Dimension L (mm) | 260 |
| Standard rated load Cor (kN) | 96.8 |
| Nominal Size of Mounting Bolt | M27 |
| Dimensions j (mm) | 204 |
| Dimension A (mm) | 74 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Standard rated load Cr (kN) | 133 |
| Dimensions a2 (mm) | 44 |
| Dimension S (mm) | 40 |
| Shaft Hole Diameter d (mm) | 85 |
| Dimension A0 (mm) | 100 |
| Coefficient fo | 13.3 |
| Shape | Square flange type |
| Bearing Identification Number | UC317 |
| Dimension A1 (mm) | 27 |
| Dimension N (mm) | 31 |
| Dimension B (mm) | 96 |
| M Code | 38338167 |
| Berat (Kg) | 4.7 |
| Tanggal Produk Terdaftar | 14 November 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
