The G tap is a hand tap for parallel pipe threads and conforms to the ISO thread specications. It is used for fitting with the pipe parallel external thread G (PF).

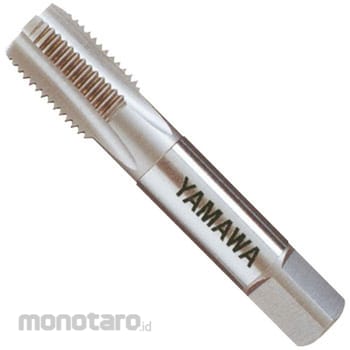

Yamawa Hand Tap for Parallel Pipe Thread (G) G 1/2-14 1pc
Rp1.399.900
Persediaan
Spesifikasi Produk
| Model Number | G |
|---|---|
| Unit | 1pc |
| Material | High speed tool steel (HSS) |
| Standard | G |
| Screw Diameter | G 1/2 |
| Number of Flutes | 4 |
| Screw Length | 26mm |
| Nominal Designation | G1/2 |
| Number of Chamfered Threads | 3.5 pitch |
| Overall Length L | 87mm |
| Screw Type | G |
| Tap Type | Straight groove tap |
| Tap Grade | Second grade |
| Female Screw Type | G, PF |
| Grade of Female Screws | None (G), Class A (PF) |
| Shank Diameter d | 18φ mm |
| Dimensions l2 | 47mm |
| Tolerance | 55 to 25µm |
| Dimension Lk | 17mm |
| Screw Length l | 26mm |
| Dimensions k (mm) | 14 |
| Size | 1/2-14 |
| M Code | 08167171 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 05 November 2018 |
| Terakhir Diperbaharui | 05 January 2026 |
