-Robust shell made of die cast.
-Adoption of a five-key guide enables a very smooth connection.
-The receptacle can be attached from the back of the panel.
-Products with 2 to 5 number of contacts commodity are in PSE notation. (receptacle is not applicable)-Wire connection method is solder.
-Screw-in lock type connector.
-PF (plug female) and RM (receptacle male) Fit

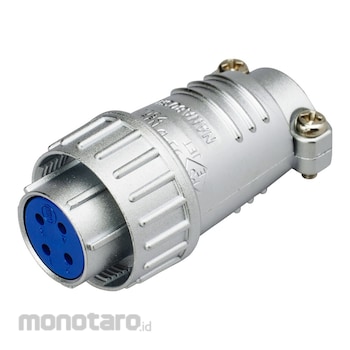

Nanaboshi Metal Connector NJC-20 Series NJC204PF 1pc
Rp199.900
Persediaan
Spesifikasi Produk
| Model Number | NJC204PF |
|---|---|
| Unit | 1pc |
| Connector Shape | PF (female) |
| Number of Contacts | 4 |
| Rated | 10A250V |
| Voltage resistance | 1500V |
| Cable Cross-Sectional Area | 1.25mm<SUP>3</SUP> |
| Shell Materials | Zinc Alloy, Satin Finish Chrome Plate Treatment |
| Insulator Materials | Synthetic Resin |
| Contact Materials | Copper Alloy, Silver Plate Treatment |
| M Code | 8556597 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 22 October 2018 |
| Terakhir Diperbaharui | 10 June 2025 |
