Successful one-touch joint volume ratio of 40% smaller than the standard.
- Large selection of models, correspond to any air pressure piping
- Easy opening of the tube even in an ultra-small
- After installation, you can change the take-off angle of th

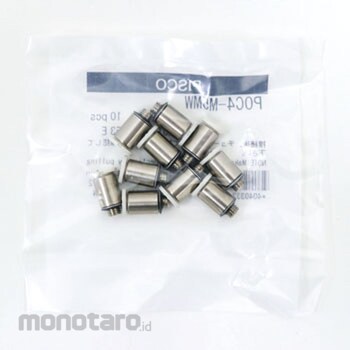

PISCO Mini Type Hexagon Socket Headed Straight POC4-M5MW 1bag(10pcs)
Rp339.900
Persediaan
Spesifikasi Produk
| Model Number | POC4-M5MW |
|---|---|
| Unit | 1bag(10pcs) |
| Material | Open ring/POM, resin body/PBT |
| Shape | Hexagon socket headed straight |
| Type | Mini type |
| Operating Temperature Range | 0 to 60°C (without freezing) |
| Dimension L | 12.6mm |
| Effective Sectional Area | 5.1mm² |
| Maximum Working Pressure | 1MPa |
| Dimension A (mm) | 3 |
| Connection Thread | M5x0.8 |
| Dimension B | 15.6mm |
| Dimensions c | 10.9mm |
| Tube Outside Diameter | 4φ mm |
| Fluid | air |
| Packing | Normal packaging |
| Material (metal hood)/Processing | Brass (electroless nickel plating) |
| Dimension P | 8mm |
| Vacuum Pressure | -100kPa |
| Opening Ring Dimensions | 9.8x7.8mm |
| Color | Open Ring/Resin Body: Light Gray |
| M Code | 87951491 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 02 October 2018 |
| Terakhir Diperbaharui | 01 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
L size of the tapered screw type is a reference dimension after tightening the screw.
