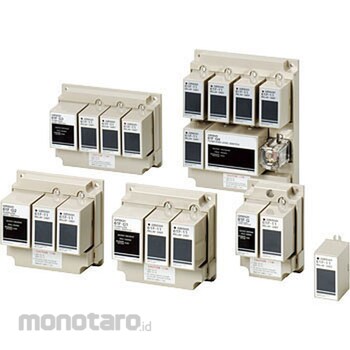

OMRON Switch Without Float (Base Type) 61F-G2 AC110/220 1pc

Name: OMRON Switch Without Float (Base Type) 61F-G2 AC110/220 1pc
Brand: OMRON
SKU: S005866049
Price: 3099900 IDR
Availability: InStock

#Nomor SKU S005866049

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	61F-G2 AC110/220
Unit	1pc
Rated Voltage (V)	AC110/200
Output	AC220V 5A (resistive load), AC220V 2A (inductive load cosΦ = 0.4)
Withstand Voltage	AC2000V 50/60Hz 1min
Type	G2 type
Shape of Tip	Automatic water supply and drainage that also serves as a water increase warning
Insulation Resistance (MΩ)	100 or more (with DC500V mega)
Operating Ambient Temperature (°C)	-10 to +55
Power Consumption (V/A)	5.5 or less
Suitable Cable	1km or less
Ambient Relative Humidity (RH)	45 to 85
Allowable Voltage fluctuation	85 to 110% of rated voltage
Control Target, Condition to Use	General water purification, sewage
Voltage Between Electrodes (V)	AC 8
Current between Electrodes	AC about 1 mA or less
Operating Resistance Between Electrodes (ohm) (Recommended)	0 to about 4k
Return Resistance Between Electrodes (ohm) (Recommended Value)	About 15k ~ ∞
Conditions to Use	General water purification, sewage
Electrical life (rated load)	500,000 times or more
M Code	38968955
Berat (Kg)	0.2
Tanggal Produk Terdaftar	19 September 2018
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Basic Building-block Controllers That Mount Directly to Panels for Easier Maintenance
- Easy maintenance with building-block Relay Units.
- Easy identification of operating status with LED operation indicator.
- Lineup includes models for tropical regions and for high temperatures. Achieve stable detection even in hightemperature environments.
Control Application: Automatic water supply and drainage with abnormal water increase alarm.
