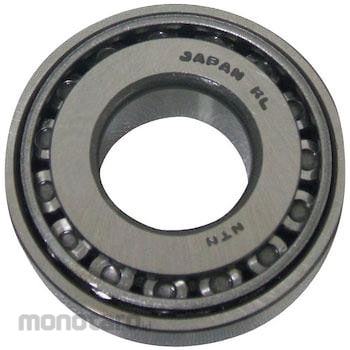

NTN Tapered Roller Bearing 32000 Series 4T-32207 1unit

Name: NTN Tapered Roller Bearing 32000 Series 4T-32207 1unit
Brand: NTN
SKU: S005532498
Price: 299900 IDR
Availability: InStock

#Nomor SKU S005532498

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	4T-32207
Unit	1unit
Width (mm)	24.25
Dimension C (mm)	19
Dimension A (mm)	17.5
Inner Diameter d (Φmm)	35
Width B (mm)	23
Outer Diameter d (mm)	72
Rolling Element Material	High carbon chromium bearing steel
JIS Grade	-
Material (Main Unit)	High carbon chromium bearing steel
Chamfer Dimensions r (mm)	1.5
Load Direction	radial
Width C (mm)	19
Outer Ring Type	flat
Race ring Shape	Tapered roller bearing
Number of track trains	Single row
Contact Angle (°)	Over 10 ° and below 17 °
Basic static load rating Cor (N)	87000
Shield Shape	Open type
Basic Dynamic Load Rating Cr (N)	72500
M Code	00336445
Berat (Kg)	0.4
Tanggal Produk Terdaftar	11 September 2018
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

● It has this name because it uses a conical roller. The inner and outer rings and the apex of the cone of the roller are designed to coincide with one point on the central axis of the bearing, and the roller is guided by the brim of the inner ring. It has a large load capacity for radial loads, unidirectional thrust loads and their combined loads, but is usually used in two opposite directions to generate axial components even when pure radial loads act. To. Clearance is obtained by adjusting the spacing between the inner and outer rings when mounted on the machine. It is a separated form.
