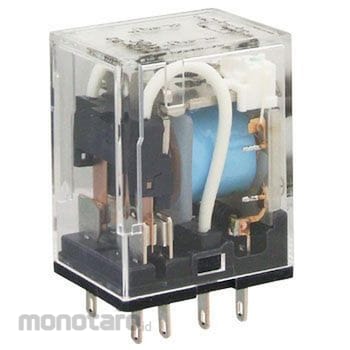

OMRON Mini Power Relay MY2 MY2N-D2 DC24 1pc
Rp219.900
Persediaan
Spesifikasi Produk
| Model Number | MY2N-D2 DC24 |
|---|---|
| Unit | 1pc |
| Family Type | MYN |
| Product Code | MY2 1712F |
| Rated Current (mA) | 36.3 (at coil temperature 23℃, tolerance DC coil resistance ±15%) |
| Coil Resistance (ohm) | Reference value: 662 (at coil temperature 23℃, tolerance DC coil resistance ±15%) |
| Type | Control Panel relay |
| Rated Voltage (V) | DC 24 |
| Number of Poles | 2 |
| Terminal Shape | Plug-in terminal |
| Number of pins (pins) | 8 |
| Contact Configuration | 2c |
| Shape | Model MY2N-D2 |
| Mounting Shape | Standard type |
| CR Circuit | Nothing |
| With or Without Diode | Yes |
| Classification | Built-in diode/operation indicator light type |
| External Dimensions (WxDxH) (mm) | 21.5 or less x 28 or less x 36 or less |
| Insulation Resistance (MΩ) | 100 or more (measured at the same point as the withstand voltage using a DC500V insulation resistance meter) |
| Operating Ambient Temperature (°C) | -55 to 60 (no freezing or condensation) |
| Contact Resistance (miliΩ) | 50 or less (by DC5V 1A voltage drop method) |
| Vibration Resistance (Durability) | 10~55~10Hz Single amplitude 0.5mm (double amplitude 1.0mm) |
| Impact Resistance Durability (m/s²) | 1000 |
| Ambient Humidity (%RH) | 5 to 85 |
| Return Voltage (%) | More than 10 |
| Operating Voltage (%) | 80 or less |
| Vibration Resistance (Malfunction) | 10~55~10Hz Single amplitude 0.5mm (double amplitude 1.0mm) |
| Shock Resistance Malfunction (m/s2) | 200 |
| Mechanical Durability (times) | More than 100 million (opening/closing frequency 18000 times/h) |
| Electrical Durability (times) | 500,000 or more (rated load, switching frequency 1800 times/h, ambient temperature condition +23℃) |
| Contact Material | Ag |
| Coil Inductance (H)/When Iron Piece is Open | Reference Value : 3.20 (60Hz) |
| Coil Inductance (H)/When Opeating Iron Piece | Reference Value : 5.72 (60Hz) |
| Maximum Allowable Voltage (V) | 100 of rated voltage |
| Maximum Opening/Closing Frequency (times/hour) | 18000 (mechanical) |
| Maximum Switching Frequency (times/hour) | 1800/Rated Load |
| Failure Rate P Level (mA) | DC5V 1 (reference value: when opening/closing frequency is 120 times/min) |
| Maximum Value of Contact Voltage (V) | AC250, DC125 |
| Resistive Load (V-A) | AC220-5, DC24-5 |
| Inductive Load (V-A) | (cosΦ=0.4, L/R=7ms) AC220-2, DC24-2 |
| Operating Time (ms) | 20 or less (when rated operating voltage is applied, contact bounce not included. Ambient temperature condition +23℃) |
| Indicator Light | Yes |
| Rated Current (A) | 5 |
| Power Consumption (VA/W) | Approximately 0.9 |
| Contact Mechanism | single |
| Recovery Time (ms) | 20 or less, when the rated operating voltage is applied. Ambient temperature condition 23℃ |
| Maximum Value of Contact Current (A) | 5 |
| Withstand Voltage (V/minute) | Between coil and contacts, between contacts of different polarity: AC2000 50/60Hz, between contacts of the same polarity: AC1000 50/60Hz |
| M Code | 2492813 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 04 September 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Eliminate the use of lead and respond to environmental conservation. We acquired VDE standard (Germany) and IMQ standard (Italy) additionally. By changing the color of the AC / DC coil tape, the discrimination of the AC / DC specification is improved.
