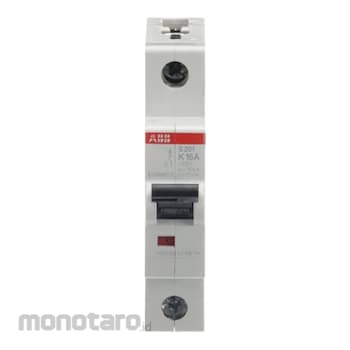

ABB Miniature Circuit Breakers 1P S201-K16 10kA(Icu) K-curve 1P 1pc
Rp449.900
Persediaan
Spesifikasi Produk
| Model Number | S201-K16 |
|---|---|
| Unit | 1pc |
| Dimensions (mm) | 17.5x69.0x88.0 |
| Nett Weight (g) | 125 |
| Number of Poles | 1 |
| Tripping Characteristic | K |
| Max. Operational Voltage | 253V AC/72V DC |
| Dielectric Test Voltage (kV) | 1min: 2 (50/60 Hz) |
| Degree of Protection | IP20 |
| Mounting on DIN Rail (mm) | TH35-15.0/TH35-7.5 |
| Mounting Position | Any |
| Tightening Torque (N m) | 2.8 |
| Connecting Capacity (mm²) | Busbar 10/10 Flexible with Ferrule 0.75-25 Flexible 0.75-25 Rigid 0.75-35 Stranded 0.75-35 |
| Rated Insulation Voltage | acc. to IEC/EN 60664-1 440V |
| Contact Position Indication | Red ON/ Green OFF |
| Electrical Endurance (cycle) | 20000AC |
| Min. Operational Voltage (V) | 12 AC/12 DC |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 26 April 2018 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Compact Home SH200L and System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics, configurations, breaking capacities and rated currents.
