- Symbol : NYMHY
- Copper Low Voltage Cable
- Construction:
1. Flexible Copper Conductor
2. Extruded PVC Insulated
3. Extruded PVC Outer Sheathed
- Rated Voltage: 350/500 Volt
- Specification:
SPLN 42-6-2-1991
SNI 04-6629.5 2006
IEC 60227-5 IEC
- Application :
Indoor location connection or portable application

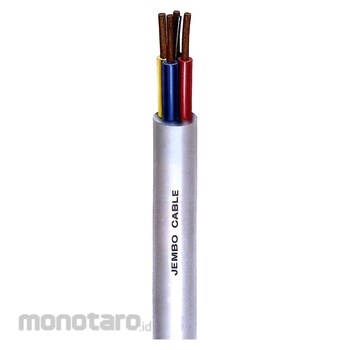

Jembo NYMHY Series Medium Heavy Thermoplastic Cable (Kabel) 300/500 (AC) 2x0.75mm2 1roll(50m)
Rp359.900
Persediaan
Spesifikasi Produk
| Unit | 1roll(50m) |
|---|---|
| Number of Cores | 2 |
| Nominal Cross Section Area (mm²) | 0.75 |
| Current Carrying Capacity (A) | 12 (at 30°C) |
| Rated Voltage (V） | 300/500 (AC) |
| Insulation Thickness (mm) | 0.6 |
| Outer Sheath Thickness (mm) | 0.8 |
| Overall Diameter (mm) | 7.8 |
| DC Resistance for Conductor (ohm/km) | Max 26 (at 20°C) |
| DC Resistance for Insulation (MΩ.km) | Min 50 (at 20°C) |
| Short Circuit Current (kA) | 0.09 (per 1sec) |
| Conductor Material | Flexible Copper |
| Insulation Material | PVC |
| Outer Sheath Material | PVC (Black Color) |
| Core x Size (mm²) | 2x0.75 |
| SNI License | Yes |
| SNI Number | 006.001.003.038.24 |
| Berat (Kg) | 4.1 |
| Tanggal Produk Terdaftar | 20 October 2017 |
| Terakhir Diperbaharui | 21 November 2025 |
