- Symbol : NYAF
- Copper Low Voltage Cable
- Construction:
1. Flexible Copper Conductor
2. PVC Insulated
- Rated Voltage: 450/750 Volt
- Specification:
SPLN 42-3 : 1992
SNI 04-6629.3.2006
IEC 60227-3 IEC 02
- Application :
Permanent installation in conduit or exposed wiring in dry location

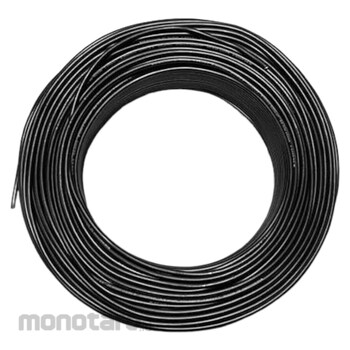

Jembo Power Cable Thermoplastic NYAF Series For Building (Kabel Listrik) 450/750 (AC) Black 1x4mm2 1roll(100m)
Rp1.499.900
Persediaan
Spesifikasi Produk
| Unit | 1roll(100m) |
|---|---|
| Color | Black |
| Number of Cores | 1 |
| Nominal Cross Section Area (mm²) | 4 |
| Current Carrying Capacity (A) | 41 (at 30°C) |
| Rated Voltage (V) | 450/750 (AC) |
| Insulation Thickness (mm) | 0.8 |
| Overall Diameter (mm) | 4.8 |
| DC Resistance for Conductor (ohm/km) | Max 4.95 (at 20°C) |
| DC Resistance for Insulation (MΩ.km) | Min 50 (at 20°C) |
| Short Circuit Current (kA) | 0.46 (per 1sec) |
| Conductor Material | Flexible Copper |
| Insulation Material | PVC |
| Core x Size (mm²) | 1x4 |
| SNI License | Yes |
| SNI Number | 006.001.001.036.24 |
| Berat (Kg) | 2.4 |
| Tanggal Produk Terdaftar | 20 October 2017 |
| Terakhir Diperbaharui | 06 February 2026 |
