- Symbol : NYAF
- Copper Low Voltage Cable
- Construction:
1. Flexible Copper Conductor
2. PVC Insulated
- Rated Voltage: 450/750 Volt
- Specification:
SPLN 42-3 : 1992
SNI 04-6629.3.2006
IEC 60227-3 IEC 02
- Application :
Permanent installation in conduit or exposed wiring in dry location

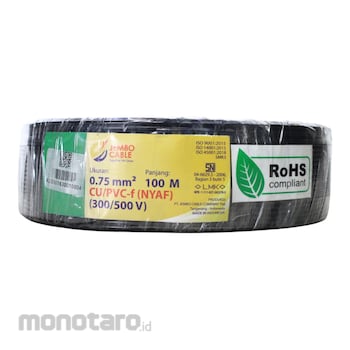

Jembo NYAF Series Thermoplastic Building Wire Cable 300/500 (AC) Black 1x0.75mm2 1roll(100m)
Rp249.900
Persediaan
Spesifikasi Produk
| Unit | 1roll(100m) |
|---|---|
| Color | Black |
| Number of Cores | 1 |
| Nominal Cross Section Area (mm²) | 0.75 |
| Current Carrying Capacity (A) | 12 (at 30°C) |
| Rated Voltage (V) | 300/500 (AC) |
| Insulation Thickness (mm) | 0.6 |
| Overall Diameter (mm) | 2.45 |
| DC Resistance for Conductor (ohm/km) | Max 24.7 (at 20°C) |
| DC Resistance for Insulation (MΩ.km) | Min 58 (at 20°C) |
| Short Circuit Current (kA) | 0.09 (per 1sec) |
| Conductor Material | Flexible Copper |
| Insulation Material | PVC |
| Core x Size (mm²) | 1x0.75 |
| SNI License | Yes |
| SNI Number | 006.001.001.036.24 |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 20 October 2017 |
| Terakhir Diperbaharui | 22 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Ketentuan dan Kondisi Barang
Bersertifikasi SNI
Produk ini sudah terdaftar sesuai Standar Nasional Indonesia.
