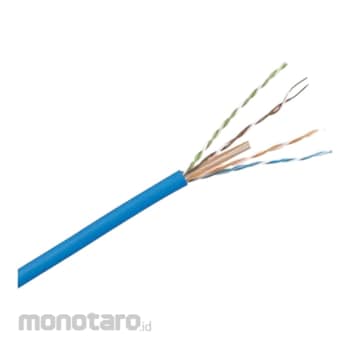

Legrand LAN Cable 032755 Cat 6 UTP Blue 305m 1pc

Name: Legrand LAN Cable 032755 Cat 6 UTP Blue 305m 1pc
Brand: Legrand
SKU: S003559291
Price: 19900 IDR
Availability: InStock

#Nomor SKU S003559291

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	032755
Unit	1pc
Sleeve	PVC
Length (m)	305
Spesifikasi	Cables 4 pairs or 2 x 4 twisted pairs 100 ohms
Conductor Material	Copper
Conductor Surface	Bare
Diameter Conductor (mm)	0.53
Nominal Cross Section Conductor (mm²)	0.22
AWG Size	24
Conductor Category	Class 1 = solid
Number of Cores	8
Number of Stranding Elements	4
Stranding Element	Pairs
Material Core Insulation	Other
Specification Core Insulation	Polyethylene (pe)
Specification Material Outer Sheath	Polyethylene (pe)
Color Outer Sheath	Blue
Outer Diameter Approx. (mm)	6
NVP Value (%)	66
RAL Number	5015
Storage Temperature (°C)	-20-60
Berat (Kg)	9.1
Tanggal Produk Terdaftar	27 September 2017
Terakhir Diperbaharui	25 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Category 6 U/UTP : for up to 1 Gigabit per second data rate, unshielded cable
4 pairs cable
Euroclass Eca offers minimum flame propagation testing with a certification of compliance from an independent laboratory.
Power over Ethernet : PoE (15W) applications compatible

Recommendation / Restriction

Compliant with ISO/IEC 11801 and ANSI/TIA 568 standards. Performance with consolidation point is not guaranteed.
