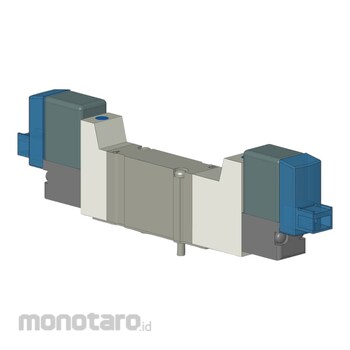

SMC Solenoid Valve (SY) Without Subplate SY3340-5LOZ 1pc

Name: SMC Solenoid Valve (SY) Without Subplate SY3340-5LOZ 1pc
Brand: SMC
SKU: S003394144
Price: 1899900 IDR
Availability: InStock

#Nomor SKU S003394144

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	SY3340-5LOZ
Unit	1pc
Series	SY3000
Type of Actuation	3 Position Closed Center
Pilot Type	Internal Pilot
Coil Specifications	Standard
Rated Voltage (V DC)	24
Light/surge Voltage Suppressor	With Light/Surge Voltage Suppressor
Electrical Entry	L-Type Plug Connector Without Connector
Manual override	Push-Turn Locking Type
Port Size	Without Sub-Plate
Thread Type	Rc
Made To Order	Standard
M Code	28441034
Berat (Kg)	0.1
Tanggal Produk Terdaftar	08 August 2017
Terakhir Diperbaharui	31 December 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

SMC has improved product performance and reliability with the redesigned SY series valve. The SY3000 and SY5000 have the same valve width as their predecessors, but the flow has been increased by up to 80%, allowing the valve size to be reduced. A built-in strainer in the pilot valve prevents trouble caused by foreign matter. By using H-NBR seal material for the main valve and seals, Ozone resistance has been improved. Side, top and bottom port/pipe directions are available to allow flexible installation. The SY is available in body ported or base mounted styles, and can be used individually or manifold mounted.
