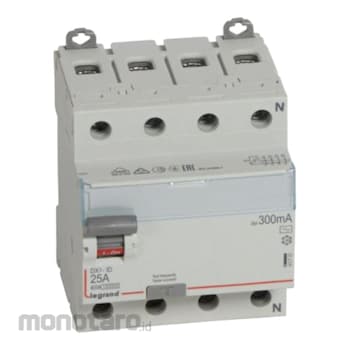

Legrand Residual Current Device DX3-ID (RCD) 411722 Neutral Right Hand Side Grey 25A 300mA 4P 1pc
Rp1.099.900
Persediaan
Spesifikasi Produk
| Model Number | 411722 |
|---|---|
| Unit | 1pc |
| Color | Grey |
| Halogen Free | Yes |
| Label Space/Information Surface | Yes |
| Number of Pole | 4 |
| Rated Voltage (V) | 400 |
| Rated Current (A) | 25 |
| Rated Impulse Withstand Voltage Uimp (kV) | 4 |
| Mounting Method | DIN rail |
| Frequency (Hz) | 50 |
| IP Protection | IP20 |
| Width in Number of Modular Spacings | 4 |
| Built-in Depth (mm) | 44 |
| Ambient Temperature During Operating (°C) | -25-60 |
| Pollution Degree | 2 |
| Width (mm) | 71.2 |
| Height (mm) | 83 |
| Depth (mm) | 77.8 |
| Impact Protection (IK) | IK04 |
| Storage Temperature (°C) | -40-70 |
| Nominal Voltage (V) | 220-440 |
| Berat (Kg) | 2.7 |
| Tanggal Produk Terdaftar | 27 February 2017 |
| Terakhir Diperbaharui | 25 March 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
RCCBs - DX³ - ID - residual current circuit breakers 16 A to 100 A - AC, A, F and B types
- Conform to IEC 61008 - 1, IEC 62423 (B type and F type)
- Compatible with prong - type and fork type supply busbars
- AC type : detect sinusoidal AC residual currents
- A type : detect sinusoidal AC and pulsating DC residual currents
- F type (High imm unity) : detect AC and pulsating DC residual currents
- Enhanced imm unity to unwanted tripping in disturbed environments
- Detection of high frequency fault currents
- B type : detect sinusoidal AC, pulsating DC and smooth DC residual currents
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
4-pole - 400 V~ - neutral on right - hand sideAC type
- Sensitivity : 300 mA
- In : 25 A
- Number of modules : 4
