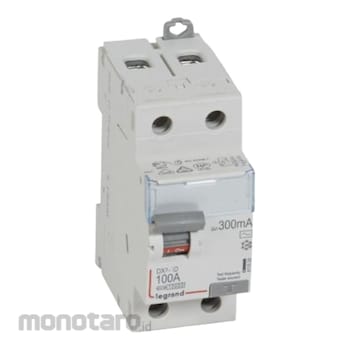

Legrand Residual Current Circuit Device DX3 (RCCD) 411528 Grey 100A 300mA 1pc

Name: Legrand Residual Current Circuit Device DX3 (RCCD) 411528 Grey 100A 300mA 1pc
Brand: Legrand
SKU: S000083129
Price: 1699900 IDR
Availability: InStock

#Nomor SKU S000083129

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	411528
Unit	1pc
Color	Grey
Halogen Free	Yes
Label Space/Information Surface	Yes
Number of Pole	2
Rated Voltage (V)	230
Rated Current (A)	100
Rated Impulse Withstand Voltage Uimp (kV)	4
Mounting Method	DIN rail
Ambient Temperature During Operating (°C)	-25-60
Frequency (Hz)	50
Connectable Conductor Cross Section Solid Core (mm²)	0.75-50
IP Protection	IP20
Width in Number of Modular Spacings	2
Built-in Depth (mm)	44
Pollution Degree	2
Width (mm)	35.6
Height (mm)	94.8
Depth (mm)	77.8
Impact Protection (IK)	IK04
Storage Temperature (°C)	-40-70
Berat (Kg)	2.7
Tanggal Produk Terdaftar	27 February 2017
Terakhir Diperbaharui	25 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Screw terminals top side for supply by cables.
Load connection bottom side by screw terminals for cables.
AC - type for the detection of AC residual currents.
Width = 2 modules
Fitted with a test button, to be used frequently to check the tripping of the residual current function.
This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.
Protected against solid bodies larger than 12,5mm ("fingerproof"): IP20 according to IEC/EN 60529 standard.

Recommendation / Restriction

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire.
Before carrying out the installation, read the instructions and take account of the product's specific mounting location.
Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees.
Use only Legrand brand accessories.
