- Bargraph to display insulation resistance.
- Displays the value of external AC voltage along with flashing symbol.
- Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
- Live circuit warning beeper.
- Releasing the test button automatically discharges the charges stored in the circuit under test.
- 200mA continuity measuring current to IEC 61557.
- Minimum 1mA current on insulation tests to IEC 61557.

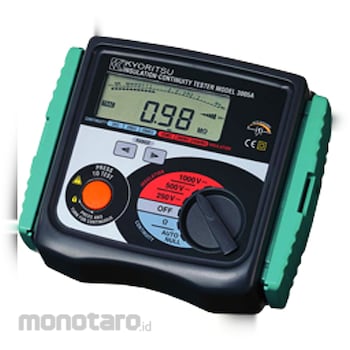

KYORITSU Digital Insulation Tester (Pengukur Isolasi) 3005A 250V/500V/1000V 1unit
Rp5.399.900
Persediaan
Spesifikasi Produk
| Model Number | 3005A |
|---|---|
| Unit | 1unit |
| Contents Included | 7122B (Test leads) Pouch for test leads; 8923 (F500mA/600V fuse) x2; R6 (AA) x8; Shoulder Strap; Instruction Manual |
| Insulation Resistance Output Voltage on Open Circuit | Rated test Voltage +20%, 0% |
| Insulation Resistance Nominal Current (mA) | min. DC 1 |
| Insulation Resistance Accuracy | ±1.5%rdg±5dgt (20MΩ/200MΩ). ±10%rdg±3dgt (2000MΩ) |
| Continuity Test Measuring Range (ohm) | 20/200/2000 |
| AC Voltage Accuracy | ±5%rdg±3dgt |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2. IEC 61010-2-031 IEC 61557-1/2/4 |
| IP Rating | IEC 60529-IP54 |
| EMC standard | IEC 61326-1 |
| Insulation Resistance Test Voltage (V) | 250/500/1000 |
| Insulation Resistance Measuring Range (MΩ) | 20/200/2000 |
| Continuity Test Output Voltage on Open Circuit (V) | DC 7-12 |
| Insulation Resistance Outpur Short Circuit Current (mA) | Approx. DC 1.5 |
| Continuity Test Accuracy | ±1.5%rdg±5dgt (20Ω), ±1.5%rdg±3dgt (200Ω/2000Ω) |
| Continuity Test Measurement Current (mA) | min. DC 200 |
| Power Supply | R6 (AA) (1.5V) x8 |
| Resistance Range (ohm) | 20/200/2000 |
| Berat (Kg) | 1.3 |
| Tanggal Produk Terdaftar | 02 March 2017 |
| Terakhir Diperbaharui | 01 August 2025 |
