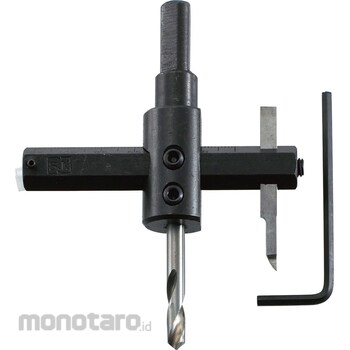

TRUSCO Circle Cutter TCC125A 1set

Name: TRUSCO Circle Cutter TCC125A 1set
Brand: TRUSCO
SKU: S000045635
Price: 549900 IDR
Availability: OutOfStock

#Nomor SKU S000045635

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	TCC125A
Unit	1set
Accessories	Iron for Blade (TCC-125KA) x 1 sheet, 3mm hex Wrench
Cutting Range (mm)	25 - 125
Dimension F (mm)	phi 5.5
Dimension G (mm)	Opposite Side 7
Dimensions a (mm)	23
Dimensions b (mm)	11.5
Dimensions c (mm)	35
Dimension D (mm)	37
Dimensions e (mm)	80
Material	Body: S45C Blade Part: SKH-51 Drill Part: High-Speed Steel
Shaft diameter	Three Groove 10mm
Weight (g)	191
Purpose of Use	Work material: Thin iron plate (up to 1.5mm), veneer plate (up to 3mm), plastic, aluminum plate (up to 1.2mm), brass plate, acrylic (up to 6.3mm).
Berat (Kg)	0.1
Tanggal Produk Terdaftar	04 October 2016
Terakhir Diperbaharui	22 October 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Can be used over a wide range from wood to iron plate. To accommodate a wide range of tools, the shank part adopts a two-step shape (10/13mm). Drilling with large holes can be done with electric drill/drilling machines.

Feature

Can be used for a wide range of purposes, from wood to iron plate. Can be used with a wide variety of machines, shank is shaped in 2 stages (10 and 13mm). Can drill large holes with electric drill or drill press.

Use
