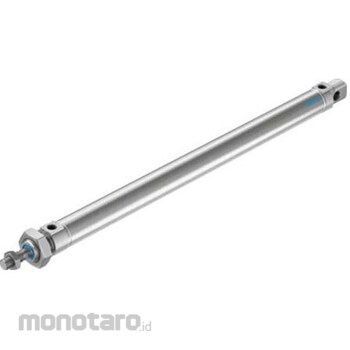

FESTO Air Roundline Cylinder DSNU Series Bore: 25mm Stroke: 400mm Male

Festo Air Round Line Cylinder, Double Acting - DSNU Series - DSNU - 25-400-PPV - This Festo pneumatic round line cylinder is used for proximity sensing. It is suitable for applications in industrial and manufacturing processes such as clamping and positioning. This is a double acting cylinder. It creates linear motion by pumping air into two independent ports and expelling it out to move the piston. This air cushion is adjustable at both ends. Its compact size makes it ideal for use in tight spaces. Durable With a barrel made from high alloy steel and with wear-resistant nitrile rubber seals, this product can withstand a variety of environmental stresses. Stroke size: 400 mm Double bore of 25 mm Male piston rod G 1/8 Pneumatic connection 247.4 N theoretical force at 6 bar (return stroke) 294.5 N theoretical force at 6 bar (forward stroke) Moving mass of 71 g at 0 mm stroke Maximum operating pressure is 10 bar Minimum operating temperature -20 C Maximum operating temperature +80 C Test weight is 238 g Range information The DSNU series is equipped with a range of circular cylinders The cylinders contain a durable stainless steel piston rod All caps are roller ground towards the barrel to achieve a high quality surface finish Festo standard based cylinders are used for proximity detection and are adjustable at both ends with air cushions Various mounting options available, with or without additional mounting parts. Piston rod thread is M10x1.25, stroke size is 400 Ambient temperature: -20 → 80°C High alloy steel material used for cylinder barrel
