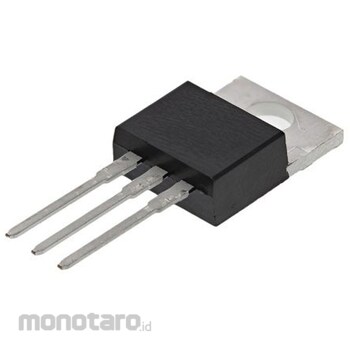

onsemi onsemi Voltage Regulator Linear Voltage 1.2 → 37 V, 3-Pin, LM317TG

Specification
*Output Current Max: 2.2A*Output Voltage: 1.2V -> 37V*Line Regulation: 0.04%/V*Load Regulation: 25mV*Mounting Type: Through-Hole*Package Type: TO-220*Number of Pins: 3V*Output Type: Adjustable*Dimensions: 10.28 x 4.82 x 15.75mm*Min Operating Temperature: -55°Cmm*Width: 10.28mm*1.2V -> 37V Linear Voltage Regulator*ON Semiconductor. ON Semiconductor's LM317 series is an adjustable linear voltage regulator. This three-terminal positive voltage regulator *has an output voltage range of 1.2V -> 37V and can supply an output current of over 1.5A. The LM317 adjustable voltage regulator is easy to use and can be used in a variety of applications, including on-card regulation *and as a programmable output regulator. *By inserting a fixed resistor between the adjustment terminal and the output terminal, *it can be used as a high-precision current regulator. Output voltage range: 1.25 to 37 V Output current: 1.5 A Short circuit current limited Thermal protection and safe area compensation Floating operation for high voltage applications
