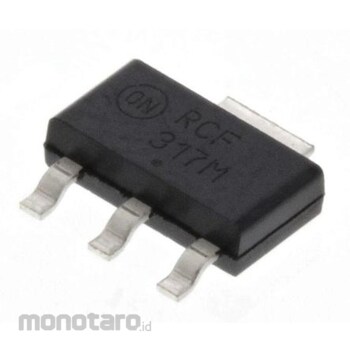

onsemi onsemi Voltage Regulator Linear Voltage 1.2 → 37V, 3+Tab-Pin, LM317MSTT3G

Specification
*Maximum Output Current: 250mA*Number of Outputs: 1*Line Regulation: 0.07%/V*Load Regulation: 1.5%*Polarity: Positive*Package Type: SOT-223*Number of Pins: 3+TabV*Output Type: Adjustable*Dimensions: 6.5 x 3.5 x 1.57mm*Height: 1.57mm*Width: 3.5mm*1.2 to 37V Linear Voltage Regulator*ON Semiconductor. ON Semiconductor's LM317 series is an adjustable linear voltage regulator. This three-terminal positive voltage regulator has an output voltage range of 1.2 to 37V and can supply an output current of over 1.5A. The LM317 adjustable voltage regulator is easy to use and can be used in a variety of applications, including on-card regulation and as a programmable output regulator. By inserting a fixed resistor between the adjustment terminal and the output terminal, it can be used as a high-precision current regulator. Output voltage range: 1.25 to 37 V Output current: 1.5 A Short circuit current limited Thermal protection and safe area compensation Floating operation for high voltage applications
