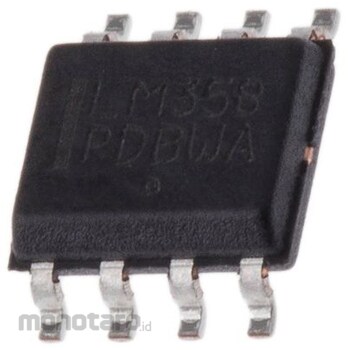

onsemi onsemi Op-amp, Surface Mount, Dual Circuit, Single Power Supply, LM358ADR2G

Specification
*Mounting Type: Surface Mount *Package Type: SOIC *Power Supply Type: Single Supply *Number of Circuits: 2 *Number of Pins: 8 *Standard Single Supply Voltage: 3 to 32 V *Standard Gain Bandwidth Product: 1 MHz *Standard Slew Rate: 0.6 V/μs *Maximum Operating Frequency: 20 kHz *Minimum Operating Temperature: 0°C *Standard Voltage Gain: 100 dB *Length: 5 mm *LM258 *LM358 *LM2904 *NCV2904 *Single Supply *Dual Op Amp *ON Semiconductor. ON Semiconductor's dual op amp series is brilliant. It features true differential inputs and can operate on a single supply voltage from 3 to 32 V. This op amp offers many advantages over other single op amps, including quiescent current (one-fifth that of the MC1741). ESD clamps are also provided on all input pins. The common-mode input range includes the negative supply, eliminating the need for biasing components in other applications. The output voltage includes the negative supply voltage. Features and Benefits: Single-supply operation: 3V to 32V Common-mode range extends to the negative supply Single and split-supply operation Low input bias current Internal compensation True differential input stage ESD clamps on inputs Applications: Integrators Comparators Voltage clamps Current regulators Linear voltage regulators
