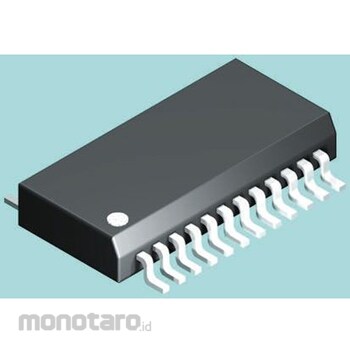

onsemi onsemi Temperature Monitor, ±2.5°C, 24-Pin QSOP

Specification
*Sensor Function: Temperature*Accuracy: ±2.5°C*Mounting Type: Surface Mount*Number of Pins: 24*Operating Temperature Range: Up to +150°C*Maximum Operating Temperature: +150°C*Min. Operating Supply Voltage: 3V*Max. Operating Supply Voltage: 3.6V*Package Type: QSOP*Length: 8.65mm*Height: 1.5mm*Width: 3.9mm*Dimensions: 8.65 x 3.9 x 1.5mm*ADT7475/7476 Temperature Monitor*With Fan Control. The ADT7475/7476 series of temperature monitors are designed to measure and monitor the temperature of up to two remote sensor diodes, measure the ambient temperature around the diodes, and monitor the speed control of up to four fans, driving one fan. This monitor is ideal for designs requiring economical, minimal-noise system cooling. Features: -High and low frequency fan drive signals -Automatic fan speed control loop -Enhanced acoustic mode -Thermal protection -Thermal control circuit -3-wire and 4-wire fan speed measurement -SMBus compatible
