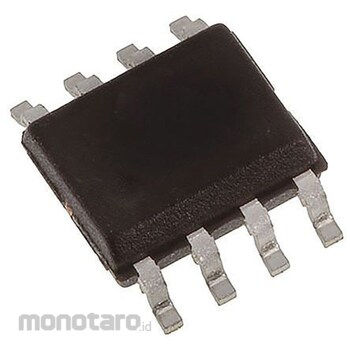

onsemi onsemi Op-amp, Surface Mount, 2 Circuits, ±2 Power Supplies, Single Power Supply, MC33272ADR2G

Specification
*Mounting type: Surface mount*Package type: SOIC*Power supply type: ±2 power supply, single power supply*Number of circuits: 2*Number of pins: 8*Standard single supply voltage: 3 -> 36 V*Standard gain bandwidth product: 24 MHz*Standard dual supply voltage: ±1.5 -> ±18 V*Standard slew rate: 10 V/μs*Maximum operating frequency: 100 kHz*Operating temperature min: -40°C*Rail-to-rail: No*Typical input voltage noise density: 18 nV/√Hz*MC33272A/74A*NCV33272A/74A*High slew rate*Low input offset voltage*Operational amplifier*ON Semiconductor. ON Semiconductor's MC33272A/74A and NCV33272A/ The 74A dual and quad op amps utilize bipolar inputs and patented Zip-R-Trim technology to reduce input offset voltage. They offer low input voltage and high gain-bandwidth product. Dual doublet frequency compensation is used to increase slew rate while maintaining low input noise. The all-NPN output stage features no deadband crossover distortion, large output voltage swing, and excellent phase/gain margin. The low open-loop high-frequency output impedance provides symmetrical AC frequency performance for both source and sink. Trimmed input offset voltage to 100 μV (typical), low input bias current: 300 nA, low input offset current: 3.0 nA, high input resistance: 16 MΩ, low noise: 18 nV/√Hz @ 1 kHz, high gain-bandwidth product: 24 MHz @ 100 kHz, and high slew rate: 10 V/μs.
