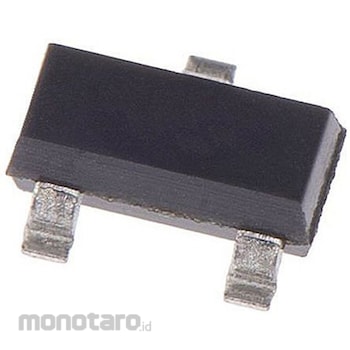

onsemi onsemi TVS Diode, Bidirectional, Surface Mount, 44V, NUP2105LT1G

Specification
*Diode configuration: Series*Maximum clamping voltage: 44V*Minimum breakdown voltage: 26.2V*Mounting type: Surface mount*Package type: SOT-23*Maximum reverse standoff voltage: 24V*Number of pins: 3*Peak pulse power dissipation: 350W*Maximum peak pulse current: 8A*ESD protection: Yes*Number of elements per chip: 2*Min operating temperature: -55°C*Max operating temperature: +150°Cmm*Length: 2.9mm*NUP2105L*NUP3105L Dual-line CAN protection. ON Semiconductor NUP2105L / NUP3105L Dual-line CAN bus protectors are designed to protect CAN transceivers in high-speed and fault-tolerant networks from ESD and other harmful transients. It comes in a compact SOT-23 package, increases system reliability, meets stringent EMI requirements, and provides bidirectional protection for each data line. Features Peak Power Dh loss: 3350 W per line Low reverse leakage current (100 nA) Low capacitance High speed CAN data rate IEC compliance: IEC61000-4-2 (ESD): Level 4 IEC61000-4-4 (EFT): 40 A - 5/50 ns (NUP3105L is 50 A - 5/50 ns) IEC 61000-4-5 (Lighting) 8A (8 / 20 μs) Flammability rating: UL94 V-0 Part numbers beginning with "SZ" indicate: Automotive and other applications requiring specific products Site and control change requirements: AEC-Q101 qualified PPAP compliant Applications - SDS (Smart Distribution Systems) - Industrial control networks Automotive networks - High and low speed CAN - Fault tolerant CAN
