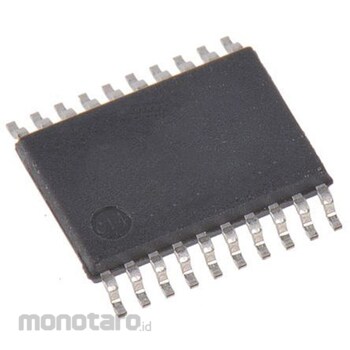

onsemi onsemi Buffer, Line Driver Surface Mount, 20-Pin, MC74HC245ADTG

Specification
*Logic Type: Transceiver *Interface: Buffer & Line Driver IC *Mounting Type: Surface Mount *Package Type: TSSOP *Number of Pins: 20 *High-Level Output Current Max: 35mA *Low-Level Output Current Max: -35mA *Maximum Propagation Delay Time @ Maximum CL: 165ns *Dimensions: 6.6 x 4.5 x 1.05mm *Operating Supply Voltage Min: -0.5V *Propagation Delay Test Condition: 50pF *High-Performance Silicon-Gate CMOS. The MC74HC245A has the same pinout as the LS245. The device inputs are compatible with standard CMOS outputs and feature pull-up resistors, making them compatible with LSTTL outputs. The HC245A is a three-state non-inverting transceiver used for bidirectional asynchronous communication between data buses. This device has an active-low output enable pin, which is used to place the I/O port in a high-impedance state. Direction control determines whether data flows from A to B or from B to A. Output drive capability: 15 LSTTL loads. CMOS. NMOS. Direct interface with TTL outputs. Operating voltage range: 2 to 6 V. Low input current: 1 mA. High noise immunity. CMOS device characteristics. Chip complexity: 308 FETs or 77 equivalent gates.
