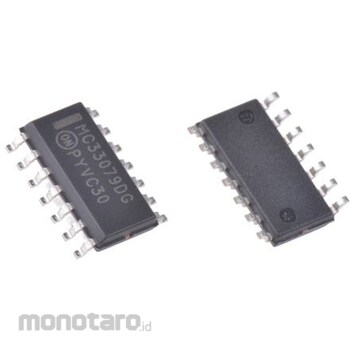

onsemi onsemi Op-amp, Surface Mount, 4 Circuits, Dual Power Supply, MC33079DR2G

Specification
*Mounting Type: Surface Mount*Package Type: SOIC*Power Supply Type: Dual Supply*Number of Circuits: 4*Number of Pins: 14*Typical Gain-Bandwidth Product: 16MHz*Typical Dual Supply Voltage: ±5 -> ±18V*Typical Slew Rate: 7V/μs*Maximum Operating Frequency: 100kHz*Maximum Operating Temperature: +85°C*Rail-to-Rail: No*Typical Input Voltage Noise Density: 4.5nV/√Hz*MC33078*MC33079*Low-Noise Dual/Quad Op Amps*ON Semiconductor. The MC33078/9 series is a family of monolithic operational amplifiers. Utilizing bipolar technology, they are suitable for audio and data signal processing applications. Using high-frequency PNP input transistors, they achieve low input voltage noise, a high gain-bandwidth product, and a high slew rate. The MC33078/9 family is available in dual and quad versions in plastic DIP or SOIC packages (suffixes P and D). Dual-supply operation: ±5 to ±18 V Low voltage noise: 4.5 nV/Hz Low input offset voltage: 0.15 mV Low input offset voltage temperature coefficient: 2 μV/°C Low total harmonic distortion: 0.002% High gain bandwidth product: 16 MHz High slew rate: 7 V/μs High open-loop AC gain: 800 @ 20 kHz Excellent frequency stability Large output voltage swing: +14.1 V / -14.6 V ESD diodes on inputs
