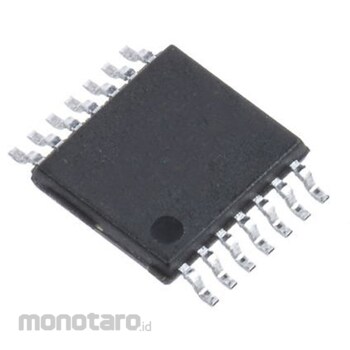

onsemi onsemi inverter inverter Schmitt trigger CMOS 74

Specification
*Logic Type: Inverter Schmitt Trigger*Input Type: CMOS*Elements per Chip: 1*Schmitt Trigger Input: Yes*Maximum Propagation Delay @ Maximum CL: 48ns*Mounting Type: Surface Mount*Package Type: TSSOP*Number of Pins: 14*Logic Circuit: 74HCT*Dimensions: 5.1 x 4.5 x 1.05mm*Height: 1.05mm*Width: 4.5mm*High-Performance Silicon-Gate CMOS*The MC74HCT14A can be used as a level converter to interface TTL or NMOS outputs to high-speed CMOS inputs. The HCT14A has the same pinout as the LS14. The HCT14A is useful for "squaring up" the input rise and fall times. The Schmitt trigger hysteresis voltage makes the HCT14A suitable for applications in noisy environments. Output drive capability: 10L TTL loads. TTL/NMOS compatible input levels. Interfaces directly to CMOS, NMOS, and TTL. Operating voltage range: 4.5 to 5.5 V. Low input current: 1.0 mA. Chip complexity: 72 or 18 equivalent gates.
