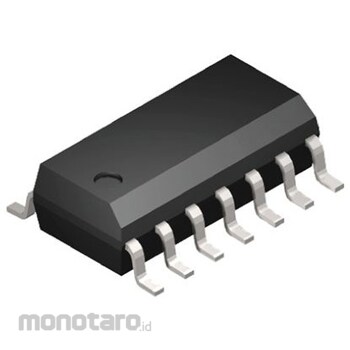

onsemi onsemi inverter inverter Schmitt trigger 74

Specification
*Logic type: Inverter*Input type: Schmitt trigger*Output type: TTL*Number of elements per chip: 6*Schmitt trigger input: Yes*Maximum propagation delay time @ maximum CL: 7.5 ns @ 50 pF*High-level output current: -24 mA (Max)*Low-level output current: 24 mA (Max)*Mounting type: Surface mount*Package type: TSSOP*Number of pins: 14*Logic circuit: LCX*Dimensions: 5.1 x 4.5 x 1.05 mm*Operating supply voltage: 3.6 V (Max)*Operating temperature: +85 °C (Max)*74LCX family*ON Semiconductor. High-performance, high-speed (low-voltage) CMOS logic. Operating voltage range: 2.0 -> 3.6 V. 5 V tolerant input/output
