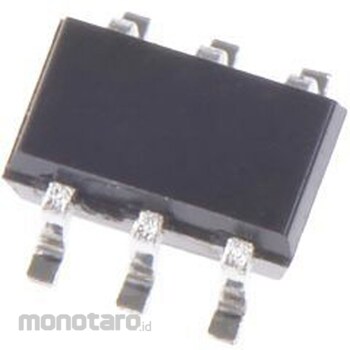

onsemi onsemi ESD Protection Array, Unidirectional, Surface Mount, 12.5V, SMF05CT2G

Specification
*Directional Type: Unidirectional*Maximum Clamping Voltage: 12.5V*Minimum Breakdown Voltage: 6.2V*Mounting Type: Surface Mount*Package Type: SC-88*Number of Pins: 6*Peak Pulse Power Dissipation: 100W*Maximum Peak Pulse Current: 8A*ESD Protection: Yes*Number of Elements per Chip: 5*Min. Operating Temperature: -40°C*Max. Operating Temperature: +125°C*Height: 1mm*This 5-Line Surge Suppressor Array is designed for applications requiring ESD and surge protection. It is intended for use in equipment susceptible to transient voltages and ESD, such as computers, printers, automotive electronics, networking communications, and other applications. This device features a monolithic common-cathode design that protects five independent lines in a single SC-88 package. Protect up to 5 lines in one SC-88 package. Peak Power hus-100W (8x20μ waveform, PPAP compatible). Part numbers beginning with "SZ" are intended for automotive and other applications requiring unique site or control change requirements. Applications: Handheld, portable, networking and telecommunications, automotive electronics, serial and parallel ports, notebooks, desktops, and servers.
