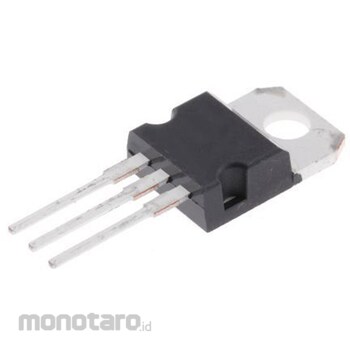

onsemi onsemi Voltage Regulator Linear Voltage 1.2→ 37 V, 3-Pin, LM317MTG

Specification
*Regulator Type: Linear Voltage mA*Number of Outputs: 1*Line Regulation: 0.07%/V*Load Regulation: 70 mV*Mounting Type: Through-Hole*Package Type: TO-220*Number of Pins: 3V*Output Type: Adjustable*Dimensions: 10.28 x 4.82 x 15.75mm*Min. Input Voltage: 3.1Vmm*Automotive Standard: AEC-Q100mm*The LM317M is an adjustable, three-terminal positive linear voltage regulator that can supply over 500 mA of current with an output voltage range of 1.2 to 37V. This linear voltage regulator is extremely easy to use, requiring only two external resistors to set the output voltage. Furthermore, it features internal current limiting, thermal shutdown, and safe-area compensation, making it inherently explosion-proof. The LM317M can be used in a variety of applications, including local card regulations. This linear voltage regulator is particularly useful as a simple adjustable switching regulator, a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317M can be used as a precision current regulator. Output current: over 500 mA. Output is adjustable from 1.2 to 37 V. Internal thermal overload protection. Internal short-circuit current limiting. Output transistor safe operating area compensation. Floating operation for high voltage applications. Eliminates many fixed voltage stockouts. Lead-free packaging available.
