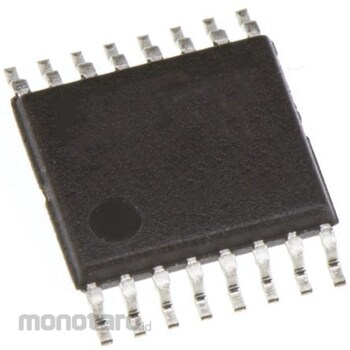

onsemi onsemi Shift Register 74HC Series 8 Stage Shift Register, 16-Pin TSSOP 1 74

Specification
*Package Type: TSSOP*Logic Type: Shift Register*Number of Stages: 8*Logic Circuit: 74HC*Mounting Type: Surface Mount*Operation/Mode of Operation: Serial, Parallel-Serial*Number of Elements: 1*Number of Pins: 16*Min. Operating Supply Voltage: 2V*Max. Operating Supply Voltage: 6V*Dimensions: 5.1 x 4.5 x 1.2mm*Reset Type: Asynchronous*The pinout for the MC74HC165A is the same as that of the LS165. This device's inputs are compatible with standard CMOS outputs with pull-up resistors and LSTTL outputs. This device is an 8-bit shift register with complementary outputs from the last stage. Data can be loaded into the register in either parallel or serial fashion. When the Serial Shift/Parallel Load (bar) input is low, data is loaded asynchronously in parallel. When the serial shift/parallel load (bar) input is high, data is loaded continuously on the rising edge of the clock or clock inhibit. Two inputs or clocks can be used by combining two independent clock sources or by designating one of the clock inputs to act as a clock inhibit. Output drive capability: 10LSTTL loads. Interfaces directly to CMOS, NMOS, and TTL. Operating voltage range: 2-6V. Low input current: 1mA. High noise immunity characteristics of CMOS devices. Chip complexity: 286 FETs or 71.5 Gates
