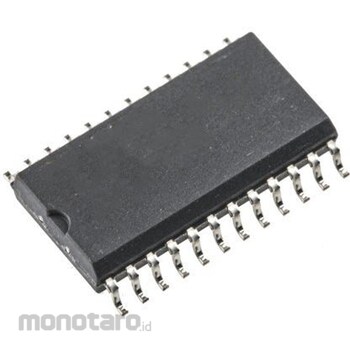

onsemi onsemi Multiplexer Surface Mount SOIC, 24-Pin, MC14067BDWR2G

Specification
*Number of pins: 24*Mounting type: Surface mount*Package type: SOIC*Dimensions: 15.54 x 7.6 x 2.36mm*Min. operating temperature: -55°C*The MC14067 multiplexer/demultiplexer is a digitally controlled analog switch featuring low on-resistance and ultra-low leakage current. This device can be used in either digital or analog applications. The MC14067 is a 16-channel multiplexer/demultiplexer with an inhibit and four binary control inputs A, B, C, and D. These control inputs select one of the 16 channels by turning on the appropriate analog switch. Low off-leakage current, matched channel resistance, low quiescent power consumption, low crosstalk between channels, wide operating voltage range: 3 V -> 18 V, low noise. Pin replacement for the CD4067B.
