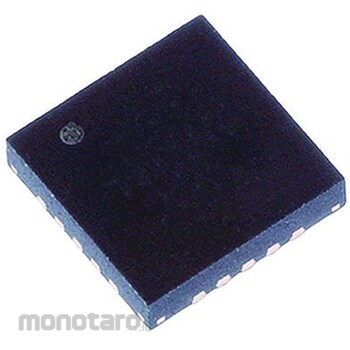

onsemi onsemi Op-amp, Surface Mount, Dual Circuit, Single Power Supply, NCS5651MNTXG

Specification
*Mounting Type: Surface Mount *Package Type: QFN *Power Supply Type: Single Supply *Number of Circuits: 2 *Number of Pins: 20 *Standard Single Supply Voltage: 6 -> 12 V *Typical Gain Bandwidth Product: 80 MHz *Operating Temperature Min: -40°C *Rail-to-Rail: No *Height: 0.95 mm *NCS5651MNTXG Dual Op Amp *ON Semiconductor. The NCS5651 is a Class A/B, low-distortion, high-efficiency power line driver optimized for signals from power line carrier modems. It contains two op amps. The output op amp is designed to drive up to 2 A peak current. At 1.5 A output current, the output voltage always swings within 1 V of either rail, improving the signal-to-noise ratio. In addition to the output amplifier, the small-signal output op amp can be configured as a unity-gain follower buffer or as a 4-pole low-pass filter stage. The NCS5651 features a single resistor programmable current limit and two independent thermal flags with hysteresis. The thermal warning flag is indicated when the internal junction temperature reaches a user-programmable thermal warning threshold. The thermal error flag is indicated when the internal junction temperature exceeds 150°C. Typical applications include: Power Line Communication (PLC) applications, actuators, motor drivers, and applications requiring robust power amplifiers. Features: Rail-to-rail: only +/-1 V dropout, Iout: 1.5 A, flexible 4th order filtering, single resistor current limit setting, diagnostic flag level shifted to VCC for simplified interfacing with external MCUs, thermal warning flag with flexible threshold setting, thermal error flag and shutdown - overcurrent flag, enable/shutdown control, exposed thermal pad
